Description

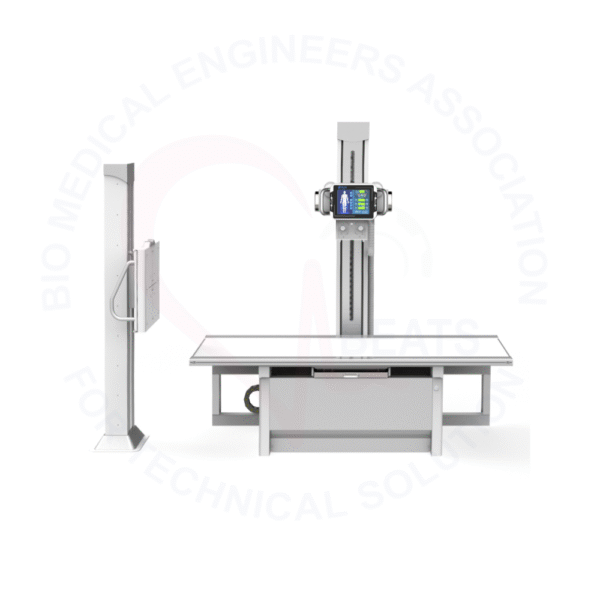

Floor-mounted Digital X-ray Radiography System adopts floor-mounted table and wall stands. Its smart design, flexible movement, easy operation and high working efficiency provide more imaging positions. It is a high-end digital radiography device with wide range of applications, which could perform routine imaging of human head, chest, abdomen, lumbar vertebra and limbs with PA, LAT and clinostatism in hospitals at all levels.

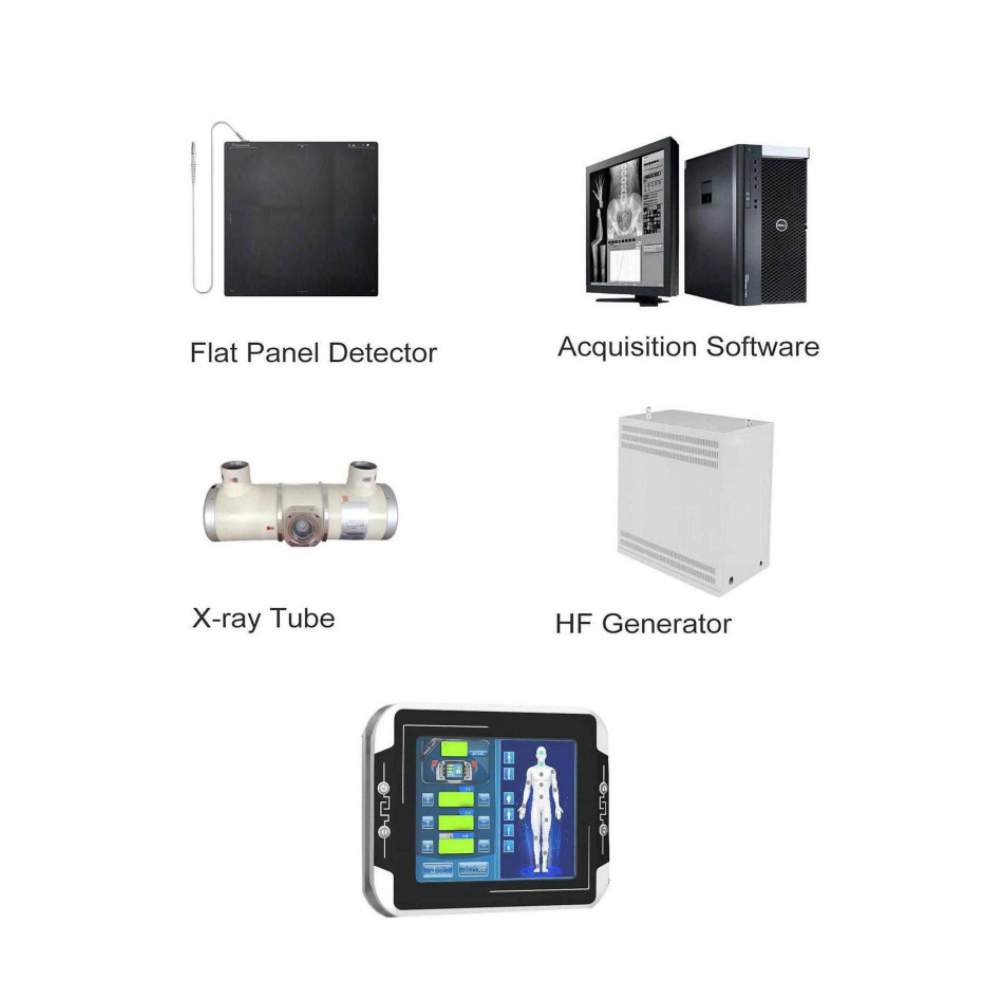

X-ray Tube
Anode type Rotating Anode
Focal Spot value 0.6mm /1.2mm
Maximum voltage 150KV
Revolving speed of anode 2800rpm
Inherent filtration 1.0mmAl
Anode heat storage capacity 300kHU
Maximum cooling rate of anode 870W
Housing heat storage capacity 900kJ
*X-ray detector(Iray brand Flat Panel Detector)*
Type Amorphous Silicon
Scintillator Cesium Iodide
Active Area 17x17Inch(43cm*43cm)
Active Pixel 3072*3072
Pixel Pitch 139um
A/D Conversion 16bits
DQE ≧70%
Spatial Resolution 36Lp/cm
Acquisition time ≤2S
*Collimator*
Type Manual Collimator
Max. Window 440mm×440mm（SID=100cm）
Lamp AC/DC24V、5W
Lamp timer Automatic illumination with timer for lamp(30S)
Inherent filtration 1.0mmAl
Illuminant LED
Grid
Densities 40LP/CM
Ratios 10:1
Size 18”×18”
Focal distance 130cm
