Description

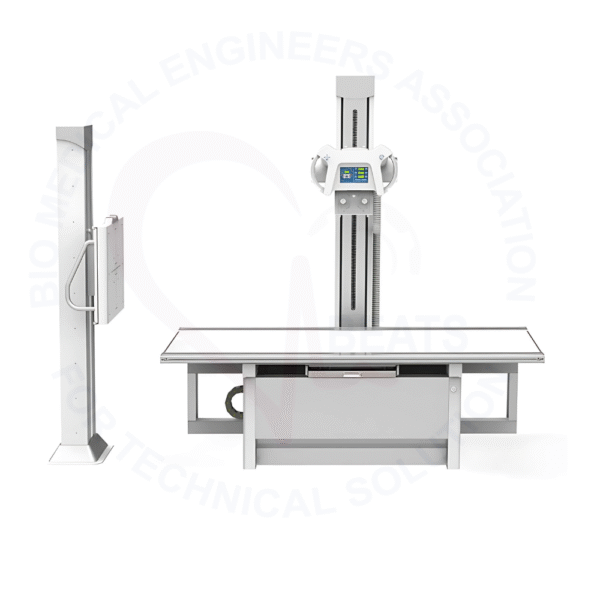

DDX03 is a high-end floor-mounted digital radiography system engineered for versatility, precision, and efficiency in clinical imaging. Designed with a floor-mounted table and wall stand, it supports flexible positioning and smooth operation, enabling a wide range of examinations including PA, LAT, and clinostatism for the head, chest, abdomen, spine, and limbs.
Key Features:
-
Smart, Space-saving Design: Floor-mounted configuration with ergonomic structure for easy positioning and high workflow efficiency.
-
High-frequency Generator: Produces high inverse frequency X-rays with large power output and excellent imaging quality.
-
Advanced a-Si CsI Flat Panel Detector: Achieves high conversion efficiency and delivers high-resolution digital images with low radiation dose.
-
Intelligent High Voltage Control: Supports multiple APR modes for precise and adaptive imaging protocols.
-
Superior Image Processing: High-standard digital processing system allows detailed post-processing to meet varied clinical needs.
-
Durable and Efficient Tube Design: Rotating anode technology ensures rapid heat dissipation, high heat capacity, and long operational life—ideal for high-volume clinical use.
Technical Specifications:
-
Main Control: 7-inch LCD color touch screen panel
-
Anode Type: Rotating anode
-
Focal Spot: 0.6 mm / 1.2 mm
-
Max Tube Voltage: 150 kV
-
Anode Speed: 2800 rpm
-
Inherent Filtration: 1.0 mm Al
-
Anode Heat Capacity: 300 KHU
-
Cooling Rate: 870 W
-
Housing Heat Storage: 900 kJ
-
Environmental Conditions:
-
Ambient Temperature: 10°C – 40°C
-
Relative Humidity: 30% – 75%
-
Atmospheric Pressure: 70 – 106 kPa
-
