Description

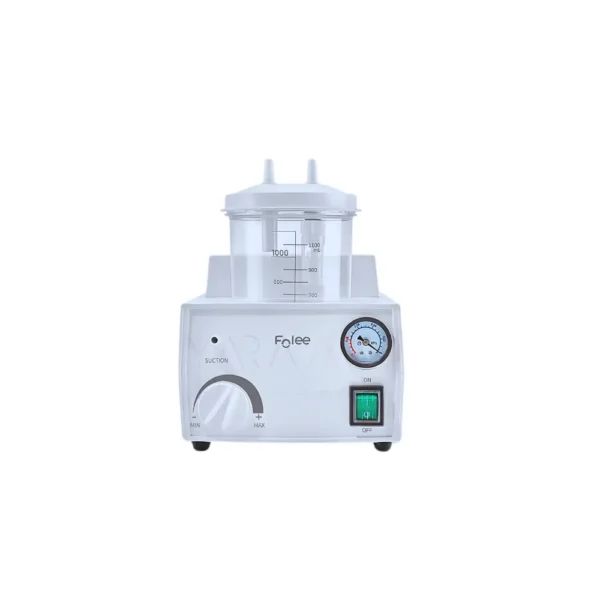

The Portable Suction Folee H003-B Unit is designed for effective suctioning in medical environments, offering reliable performance with user-friendly features. Ideal for short-time operations, this unit is suitable for a range of applications, excluding those involving flammable or explosive gases.
SCOPE OF APPLICATIONS
High Negative Pressure:
With an ultimate negative pressure value of ≥0.075 MPa and a regulating scope of negative pressure starting from 0.02 MPa, this suction unit ensures powerful suction capabilities.
Air Exhausting Speed:
The unit achieves an air exhausting speed of ≥14 L/min, providing efficient suctioning for various medical procedures.
Generous Reservoir Capacity:
The 1,000 mL reservoir accommodates ample liquid collection, minimizing the need for frequent emptying during operations.
Power Supply & Efficiency:
Compatible with AC 220V/110V at 50/60Hz, the unit operates with an input power of 90 VA while maintaining a noise level of ≤65 dB(A).
Robust Suction Mechanism:
Featuring a reliable piston pump, this unit is designed for consistent and efficient performance in clinical settings.
Compact Dimensions:
Measuring 335 mm x 150 mm x 240 mm, the portable suction unit is compact and easy to transport, making it ideal for various medical environments.
Safety Standards:
Classified as an application part of Class II, Type B electric classification, it adheres to safety regulations for medical devices.
Working Conditions:
The unit operates optimally within an ambient temperature range of 5°C to 40°C and relative humidity of ≤80%. It is essential to allow the unit to acclimate to normal working temperatures for over 4 hours if stored below 5°C.
Electromagnetic Interference:
To prevent potential interference, it is recommended to keep the suction unit away from high-frequency equipment.
